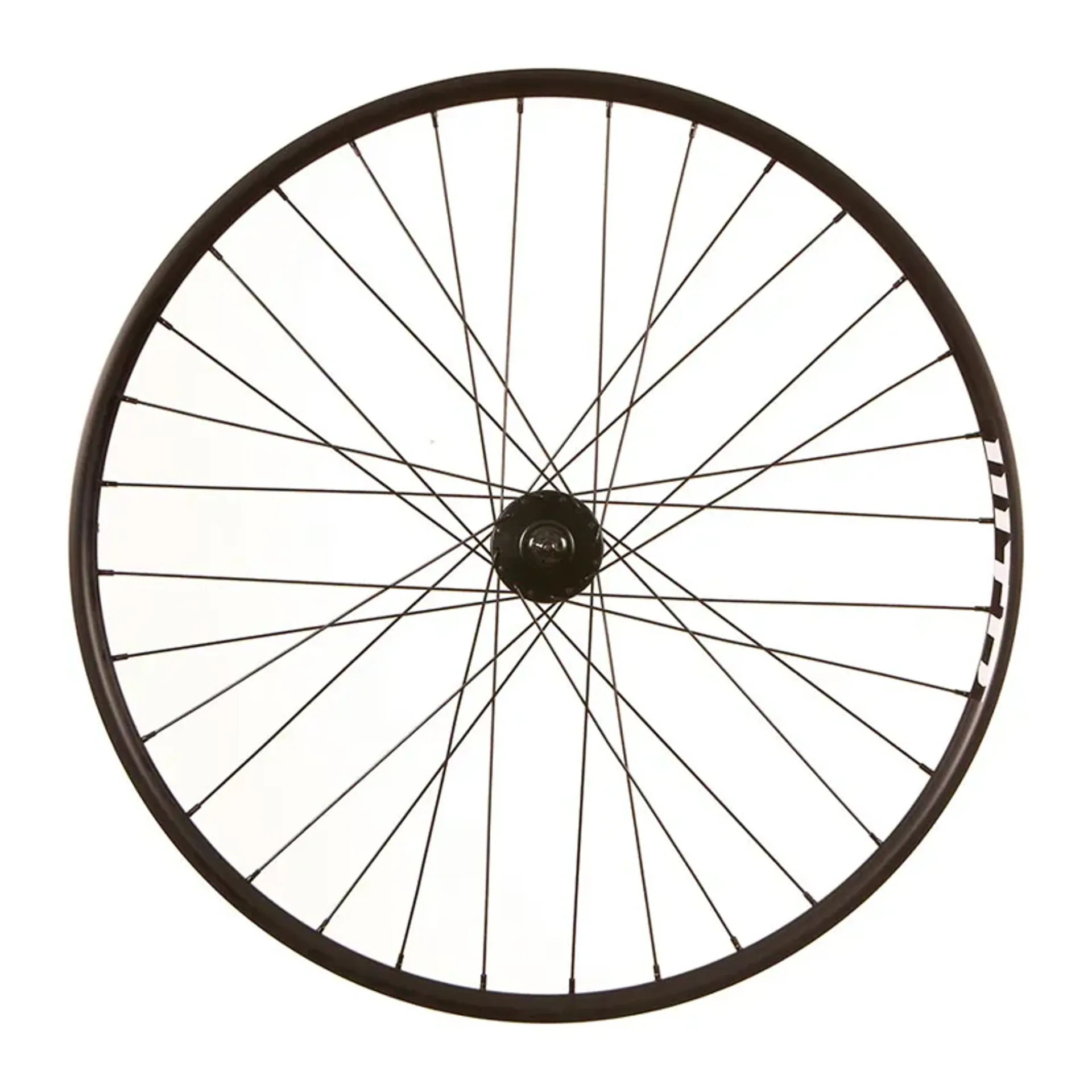

WTB STi23 / Shimano HB-M525, Wheel, Front, 27.5'' / 584, Holes: 32, QR, 100mm, Disk IS 6-bolt.
WTB STi23 / Shimano HB-M525, Wheel, Front, 27.5'' / 584, Holes: 32, QR, 100mm, Disk IS 6-bolt.
Wheel Shop

Wheel Shop WTB STi23 27.5in Shimano HB-M525 Front Wheel in Black

$115.00
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

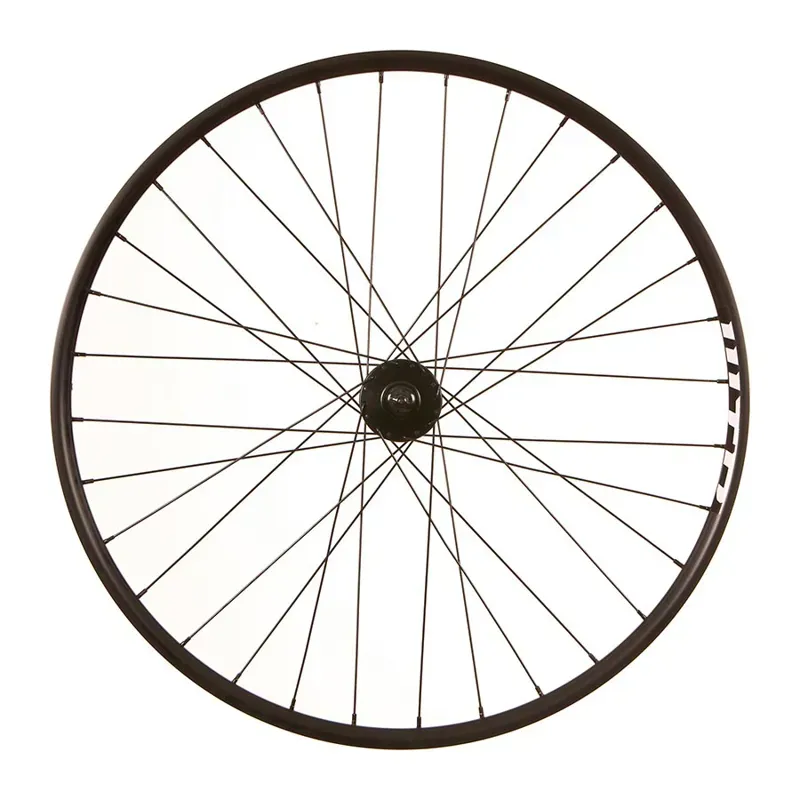

Wheel Shop WTB STi23 27.5in Shimano HB-M525 Front Wheel in Black

Season:Perennial

Brand:Wheel Shop

Code:041855-01-275

WTB STi23 / Shimano HB-M525, Wheel, Front, 27.5'' / 584, Holes: 32, QR, 100mm, Disk IS 6-bolt.

Rims: WTB ST i23, inner width: 23 mm

  • TCS 2.0 Tubeless system
  • Solid Strip (included) protects and ensures a smooth surface between the tire and the rim
  • Easy On-Ramp profile allows for a smooth tire installation and stress- free inflation
  • Industrial Epoxy reinforced Pinned Joint provides repeatable tubeless consistency
  • Drilled for Presta valve
  • 32 holes

Front hub:

  • Shimano HB-M525, M9x100mm
  • 6-bolt disk mount
  • Adjustable bearings
  • Quick-Release binder included

Rear hub:

  • Shimano FH-M525, M10x135mm
  • HG Freehub compatible with 8 - 10, MTB 11-speed
  • 6-bolt disk mount
  • Adjustable bearings
  • Quick-Release binder included

Tubeless Compatible (Valve and Tape not included). Assembled in North America by experienced wheelbuilders with Sapim 14G Stainless Steel spokes and 14mm Brass Polyax Nipples.

Specifications:

  • Position: Front
  • Wheel Diameter/ISO: 27.5" / 584
  • Hub Model: Shimano HB-M525
  • Axle Type: QR
  • Hub Spacing: 100mm
  • Freehub Body: -
  • Wheel Tire Type: Clincher
  • Rim Drilling: 32
  • Wheel-Brake Comp.: Disk IS 6-bolt
  • Wheel Weight: -
  • Rim Material: Aluminum
  • Spoke Type: J-Bend
  • Valve: Schrader
  • Rim Construction: Double wall
  • Rim Internal Width: 23mm
  • Rim External Width: -
  • Depth: -
  • Rim Model: WTB ST i23
  • Skewers Included: Yes
  • Rim inner width range: 22-27.9mm
  • Rim Color: Black
